Binding Force Adjustable Cable Tie machine Automatic Bundling Reel Zip Ties

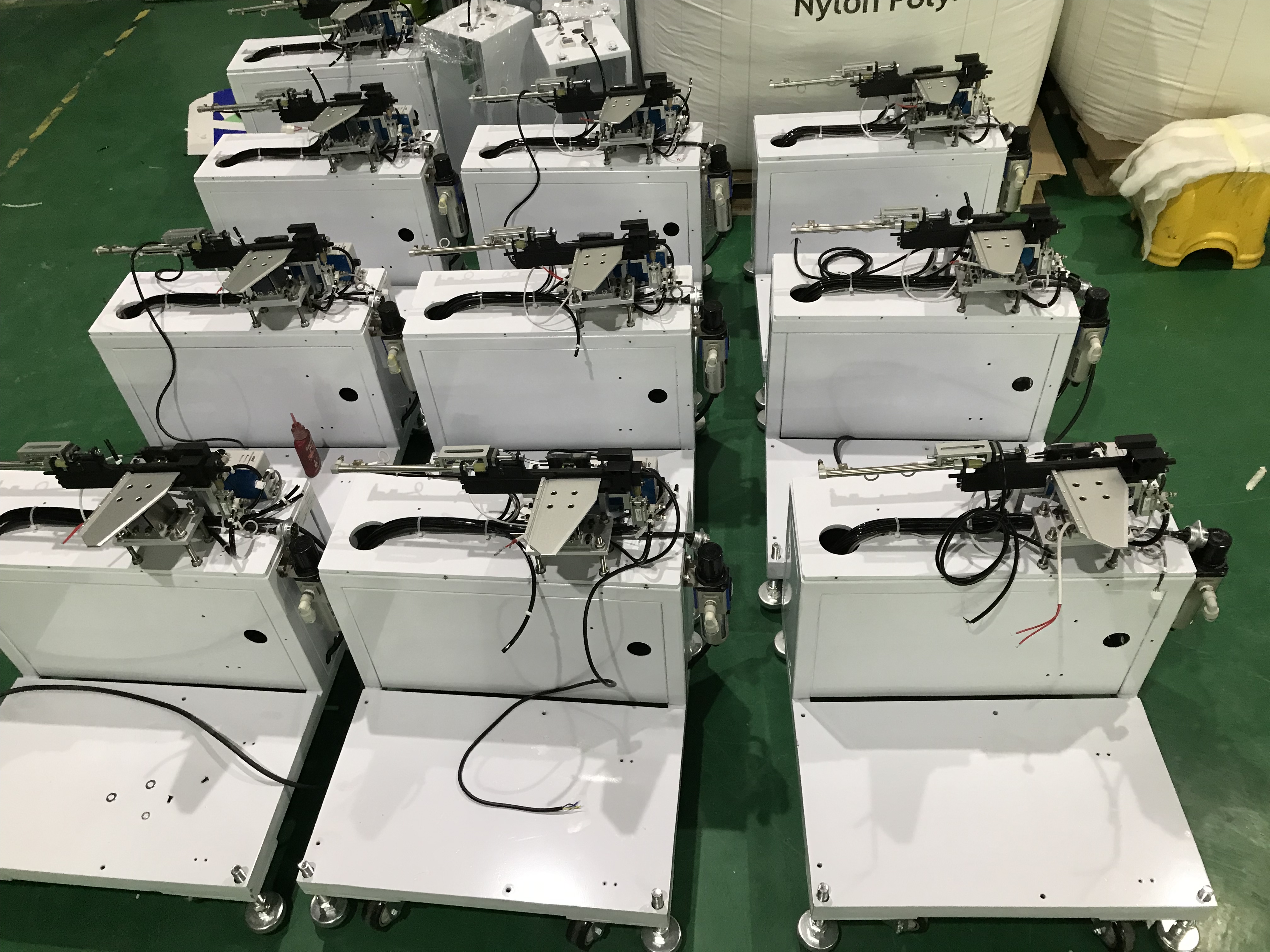

SWT25100FC cable tie machine is also named automatic cable tie system. It can speed up the bundling process and improve working efficiency.
Features
1. Using reel cable ties C25100, 5,000pcs/reel.
2. It consists of a host machine, a tool head (tool gun), the reel.
3. The tool head is fixed in the bench or in the customized frame.
4. It starts to bundle objects once tread the foot pedal (automatic threading, tightening and cutting).
5. Automatically detect whether cable tie is bundled successfully or not.
6. Automatically detect whether cable tie is jammed or not and clean jammed cable tie.
7. Automatically count quantity of cable ties bundled successfully.
8. Power supply: AC110V, 50/60Hz; AC220V, 50/60Hz.
9. Binding force is adjustable.
Base data
| Name | SWT25100FC |
| Description | Automatic cable tie system |
| Features and advantages | 1. Use reel cable ties C25100. 2. Small and noise lower. 3. Automatic adapt and bundle objects with diameters less than 18mm. 4. Automatic detect failure. It can detect whether cable ties have been bundled or not and deal with the failed ties. 5. The operation speed is adjustable. |
| Bench mount kit | Including a gun head, a metal support, a foot pedal(Standard) |
| Overhead suspender | Unnecessary |
| Cable ties | C25100 reel cable ties |
| Material | Nylon 66 U4820L |
| Width | 2.5mm |
| Length | 100mm |
| Tensile strength | 8kg |
| Quantity/REEL | 5,000pcs |
| Usage/per time in vibration bowl | Without vibration bowl |
| Bundling Max Dia. for wire | Ø18.0mm |
| Bundling Max Dia. for tube | Ø16.0mm |
| Bundling Max Dia. | Ø2.0mm |
| Bundling speed | 1.1S/cable tie |
| Operation | Electrical |
| Tool head power | DC48V, automatic switch |
| Power supply | AC110V/AC220V, 50/60Hz; plugs available |
| Pneumatic pressure | 5kg/cm² |
| Max power | 1,000W |
| Tension force | Adjustable |
Packing details
| SWT25100FC Packing Details |
| Export wooden case | 1pcs |
| The host machine / wooden case | G.W./kg | 41kg |
| Packing Size/cm | L63 * W61 * H37cm |
| The vibration bowl / wooden case | G.W./kg | None |
| Packing Size/cm | None |
| Total G.W. | 41kg( estimated) |
FAQ
1. What are the differences between SWT25100FC and other brand machines?
Pls see the table as below:
| Description | SWT25100FC | Other brand machines |
| 1. Don’t have to change jaws to adapt to bundle different objects. | Yes | No, you need to change different jaws to adapt different goods bundled. |
| 2. With temperature control system to protect cable ties toughness | Yes | No, they are without this system. |
| 3. Automatic counting qty of cable ties | Yes | No, they don’t have. |
| 4. Automatic detecting whether cable ties are jammed or not and cleaning them. | Yes | No, they can’t. |
2. How do you control the quality?
SWIFT machine would be tested 1,000 – 2,000 times before shipment to guarantee the good condition.
