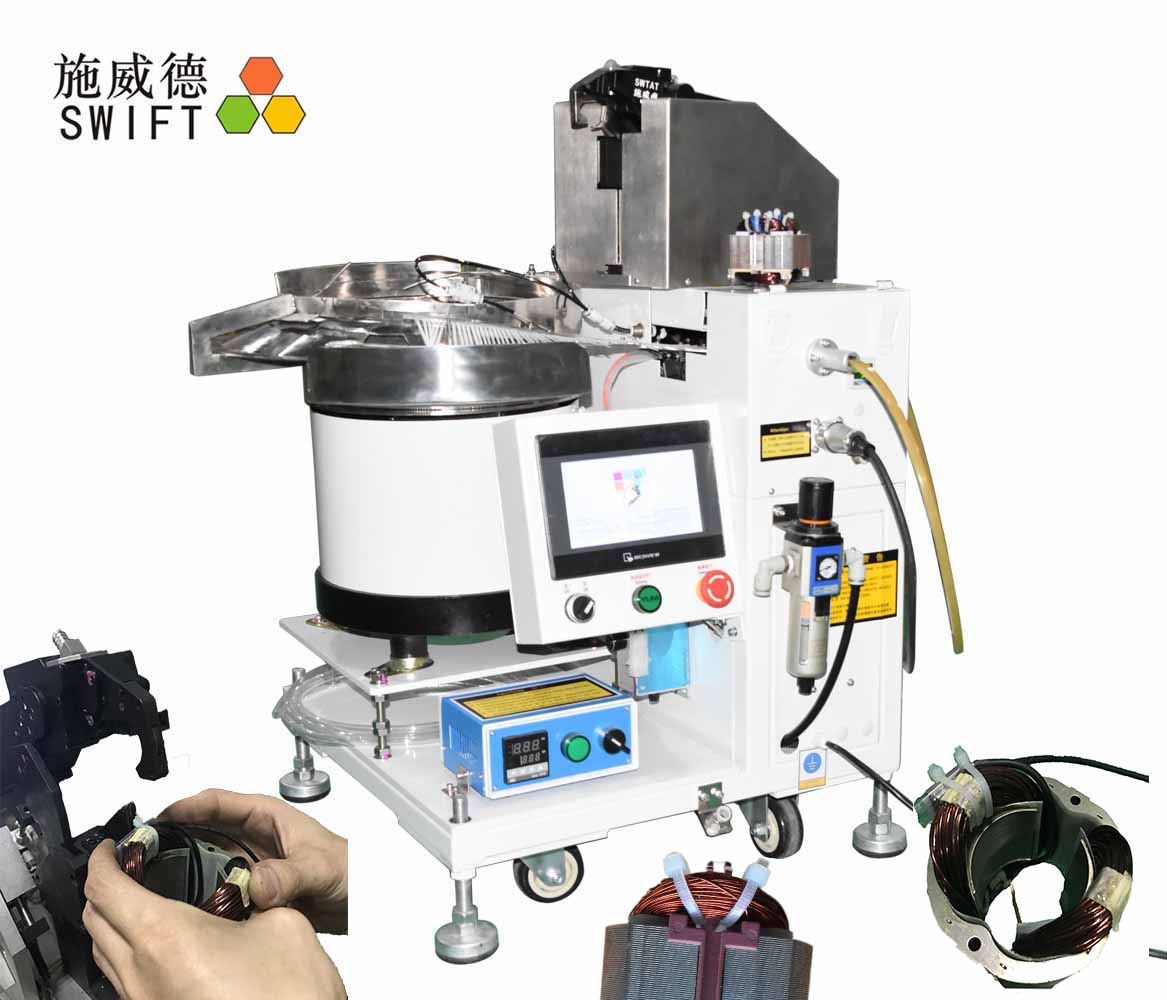

SWT25080M Nylon Cable Tie Machine For Packing Nylon Plastic Ties Between Tubes
Automatic cable tie tool SWT25080M uses nylon cable ties and automatically binds objects with them.
SWT25080M details
1. Using nylon zip ties, T25080, W2.5 * L80mm.
2. Put nylon cable ties into the vibration bowl, they would be sorted and transferred into the cable tie gun.
3. The cable tie gun is fixed. The weight is 6kg. It is more complicated than the handheld cable tie gun.
It is for special use, such as motor coils binding.
4. Be suitable for bundling those objects which has small room for the cable tie to go through.
5. There are 4wheels, easy to move.
6. Automatic detec the failure, the machine would stop immediately if there is any malfunction. Automatic deal with the failed cable tie and restart.
7. Voltage: AC220V - AC240V, 50/60Hz
SWT250080M parameters
| Model | SWT25080M |
| Binding dia. | 5mm - 10mm |
| Cable ties size | W2.5 * L80mm |
| Cable ties model | T25080 |
| Binding forces | Adjustable |
| Binding speed | 0.9S |
| Voltage | AC220V - AC240V |
| Pneumatic pressure | 5kg/cm2 |
Packing infomation
| Name | Packing size | G.W. | N.W. |
| The host machine | L75 * W70 * H105cm | 105kg | 82kg |
| The vibration bowl | L55 * W49 * H52cm | 67kg | 53kg |
Note: The host machine must be packed in a wooden case. The vibration bowl must be packed in a wooden case. They may be crashed in a wooden case when ship.
Applications
Be suitable for motor coil and the objects which have small room for cable tis to go through.
Delivery
1. 100% TT payment before ship.
2. Delivery date: 12 - 15days.
3. Shipped by sea, air, Fedex.
